Engine-powered Forklifts
1F Series

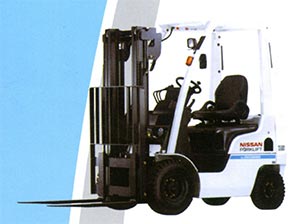

1F1 Solid Tire Model
LPG/Gasoline & Diesel1 FI Load capacity: 1500kg -1750kg
1F2 Load capacity: 2000kg-2500kg-3000kg-3500kg
Load Center: 500mm

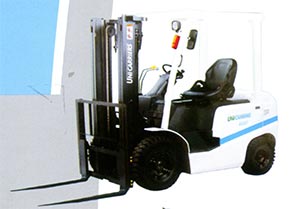

S-Smart Series
Gasoline & DieselLoad capacity: 2000 - 3000kg
Load Center: 500mm
Load Center: 600mm
Diesel

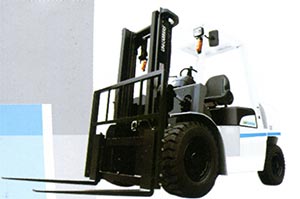

1F6 Load capacity: 6000kg-10.000kg
Load Center: 600mm

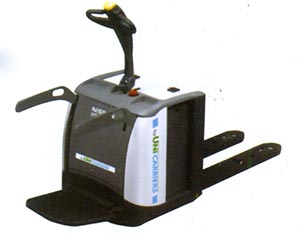

Pallet Transporters
PLP
Electric (24V)Load Capacity: 1450kg, 2500kg
Load Center: 600mm

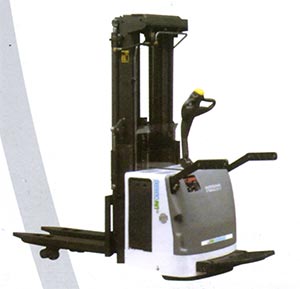

Pallet Stackers
PSP
Electric (24V)Load Capacity: 1200kg, 1400kg, 1500kg
Load Center: 600mm
A Lifetime of Trusted Value
Comfortable Operator Compartment
Expansive floor space for easy foot movement
An amazing floor space by placing tilt cylinders under the floor, reserving expansive footwell as well as providing easy entry and exit.
Multifunctional suspension seat
Features include reinforced driver support, operator weight balance adjustment, recliner and seat belt.
Reduced fatigue due to circular steering wheel
The small diameter (300mm outer diameter) steering wheel gives improved maneuverability as well as offering easy access to the operator compartment.
Convenient parking lever
The lever is positioned to the right of the steering wheel for easy entry and exit. A double action brake release on the lever further improves safety.
Easy entry and exit from an extra wide step
The secure step with enlarged foot step enables greater comfort and less fatigue while getting on and off the truck.
Portable glove box
Cup holder
A Lifetime of Trusted Value

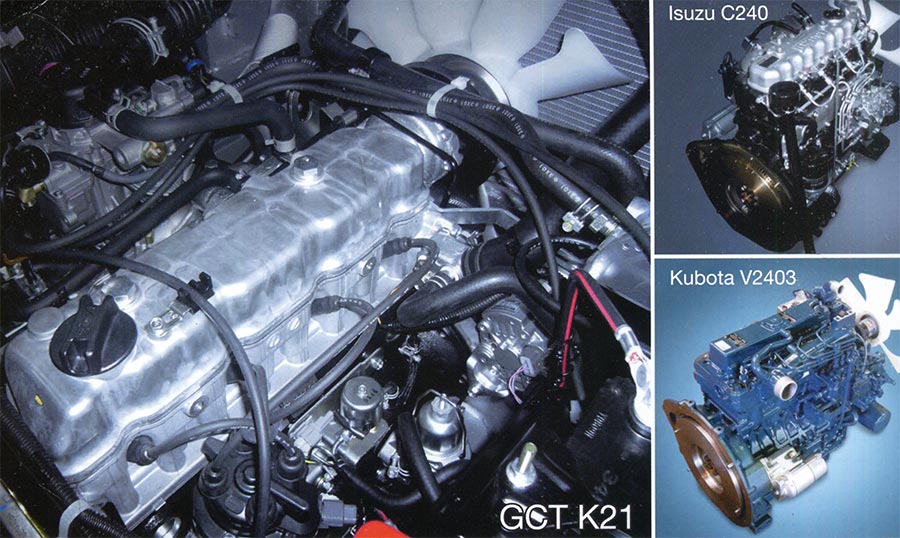

Engine line-ups to meet diversified needs
Smart Machine Series with GCT K21, Isuzu C240 and Kubota V2403
GCT K21, the gasoline engine derived from automobile technology, Isuzu C240 diesel engine, installed to our products for number of years, and Kubota V2403 diesel engine form the engine line-ups of Smart Machine Series. These three engines have been widely known as reliable and reputable engines with high recognition used over a number of units in the field of industrial trucks. As the result, the three engines will meet the diversified needs from the markets increasing the values of Smart Machine Series.
|
K21 |
C240 |
V2403 | ||
|
Displacement |
cc |
2065 |
2369 |
2434 |
|
Rated horsepower |
kW / rpm |
34.6/2250 |
35.4/2500 |
35.5/2600 |
|
Rated torque |
Nm/rpm |
153.5/1600 |
140.0/1800 |
156.5/1600 |
Excellent Safety
Innovative fork-landing mechanism
(Available for VM type mast) The fork-lowering speed decelerates at a height of approximately 150mm above the ground enabling accurate placement of the forks into the load fork pockets or pallet.
High-mounted rear combination lights
The brake lights are easily visible at the top of the overhead guard. Recessed for protection, they are vibration resistant for long bulb life.
Single-piece headguard
The front and rear pillars are welded together in a single-piece structure to give additional strength to the entire frame.
Anti-slip mat on the hood
A rubber strip is attached to the hood to prevent slippage while getting on and off.
Major Options
Rotating warning light
Rear working light
Windshield wiper
Insulator kit
STANDARD SPECIFICATIONS
| STANDARD SPECIFICATIONS | 1 Brand / Manufacturer | UniCarriers | |||||||||||
|
2 Model |
FG20T3C |
FG25T3C |
FG30T3C |
FD20T3CZ |
FD25T3CZ |
FD30T3CZ |
I FD20T4C |
FD25T4C |
FD30T4C | ||||
|
3 Load Capacity |
kg |
2000 |
2500 |
3000 |
2000 |
2500 |
3000 |
2000 |
2500 |
3000 | |||
|
4 Load Center |
mm |
500 |
500 |
500 | |||||||||
|
5 Power Type |
Gasoline |
Diesel |
Diesel | ||||||||||
|
6 Operator Position |
Seated |
Seated |
Seated | ||||||||||
|
7 Tire Type |
Pneumatic |
Pneumatic |
Pneumatic | ||||||||||
|
I 8 Wheels (x=Driven) |
Front / Rear |
2x12 |
2x /2 |
2x /2 | |||||||||

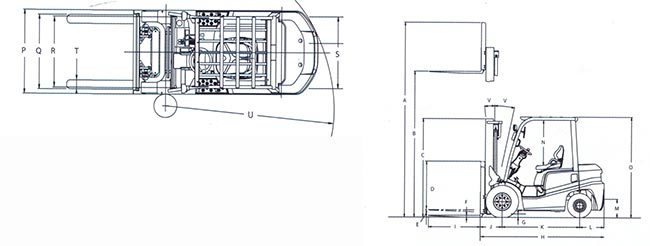

| DIMENSIONS |
I 9 Maximum Fork Height |
mm |
B |
3000 |
3000 |
3000 | |||||||
|
10 Free Lift |
mm |
E |
110 |
165 |
110 |
165 |
110 |
165 | |||||
|
13 Fork Size |
Lx Wx T |
mm |
IxTxF |
1070 x |
122 x 40 |
1070 x 125 x 45 |
1070 x 122 x 40 |
1070 x 125 x 45 |
X o rv o |
122 x 40 |
1070 x 125x 45 | ||
|
Fork Spread (Outside) |
Max./Min. |
mm |
Q |
1020/245 |
1090/250 |
1020/245 |
1090/250 |
1020/245 |
1090/250 | ||||
|
14 Tilt Angle |
Fwd. / Bwd. |
deg. |
V |
6/12 |
6/12 |
6/12 | |||||||
|
15 Length to Fork Face |
mm |
H |
2485 |
2555 |
2705 |
2485 |
2555 |
2705 |
2485 |
2555 |
2705 | ||
|
16 Overall Width |
mm |
P |
1150 |
1225 |
1150 |
1225 |
1150 |
1225 | |||||
|
17 Mast Height Fork Lowered |
mm |
C |
2030 |
2075 |
2030 |
2075 |
2030 |
2075 | |||||
|
18 Mast Height Fork Raised |
mm |
A |
4030 |
4250 |
4030 |
4250 |
4030 |
4250 | |||||
|
19 Overhead Guard Height |
mm |
0 |
2070 (2130) |
2090 (2150) |
2070 (2130) |
2090 (2150) |
2070 (2130) |
2090 (2150) | |||||
|
20 Operator Seat Height |
mm |
1045 |
1070 |
1045 |
1070 |
1045 |
1070 | ||||||
|
21 Turning Radius (Outside) |
mm |
U |
2170 |
2240 |
2400 |
2170 |
2240 |
2400 |
2170 |
2240 |
2400 | ||
|
22 Load Distance |
mm |
J |
450 |
480 |
450 |
480 |
450 |
480 | |||||
|
Rear Overhang |
mm |
L |
435 |
505 |
525 |
435 |
505 |
525 |
435 |
505 |
525 | ||
|
23 Basic Right Angle Stacking Aisle Width (1100mm x 1100mm) |
mm |
3920 |
3990 |
4180 |
3920 |
3990 |
4180 |
3920 |
3990 |
4180 | |||
DIMENSIONS
|
GROUND CLEARANCE |
FD/FG20 |
FD/FG25 |
FD/FG30 |
|
mm |
mm |
mm | |
|
Mast |
110 |
110 |
140 |
|
Frame |
120 |
120 |
145 |
|
Front axle |
125 |
125 |
145 |
|
Rear axle |
150 |
150 |
175 |
|
Counterweight |
155 |
155 |
185 |

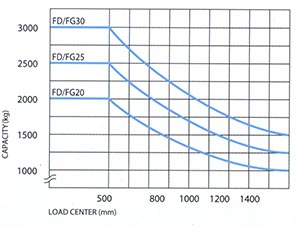

LOAD CHART 2-3t
A Lifetime of Trusted Value

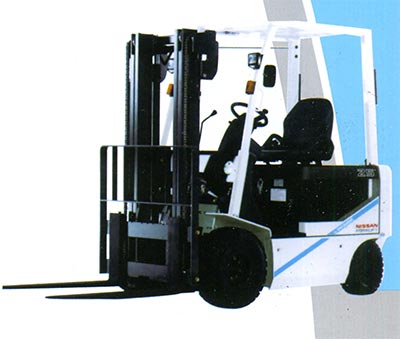

Electric-powered Forklifts
BX Series
1B1 Solid Tire ModelElectric (48V)
Load Capacity: 1500kg, 1750kg Load Center : 500mm
1B2 Solid Tire Model
Electric (48V)
Load Capacity: 2000kg, 2500kg Load Center: 500mm

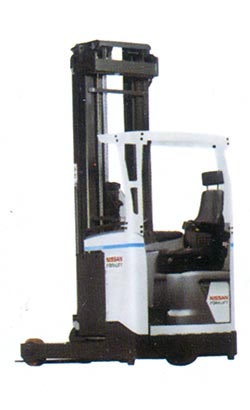

Reach Trucks
UHD Series
Electric (48V)Load Capacity:
ULS120:1200kg, 1400kg UND140:1400kg, 1600kg
UMS160:1600kg, 2000kg 2500kg
Load Center: 600mm

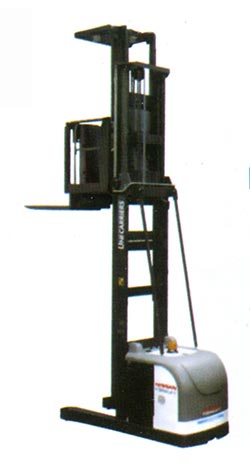

Order Pickers
OPH/OPC/OPS
Electric (24V)Load Capacity: 1000kg
Load Center: 600mm

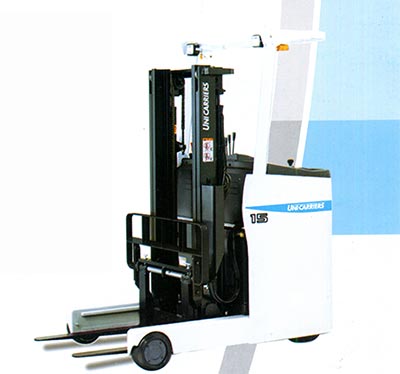

FRB-8A
Stand-up Type
Electric (48V)Reach Type
Load Capacity: 1000kg,1250kg, 1350kg, 1500kg 1800kg, 2000kg, 2500kg, 3000kg
Load Center: 500mm
.
